SIMATIC Industrial Automation Systems

Integrated and Efficient

The scalable portfolio of the SIMATIC family ensures an optimal solution for every application. You can benefit from the system consistency – in combination with the integrated engineering in the TIA Portal, you can significantly save costs and shorten your time-to-market.

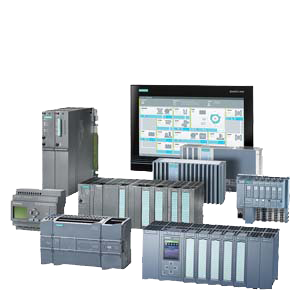

The SIMATIC family comprises the following components that complement each other perfectly:

  • SIMATIC Controller
  • I/O systems
  • Control systems
  • Software for SIMATIC Controllers
  • Programming devices

The demands on modern machines and plants are steadily growing in all industries. With the automation systems from Siemens, you can cover all requirements while benefiting from maximum efficiency, flexibility, and cost effectiveness.

SIMATIC controllers for cost-effective automation solutions

The right controller every time: for plant building, mechanical engineering, production or process engineering, small autonomous applications, as well as highly complex applications. Siemens offers the optimal control solution for every application area - whether PLC or PC-based.

The range encompasses logic modules including Basic, Advanced and Distributed Controllers, as well as Software Controllers.

Portfolio:

  • LOGO! logic module
  • S7-1200
  • Advanced Controllers - S7-1500 - S7-300 - S-7400

Basic Controllers

Basic Controllers are the intelligent choice for applications in the low to mid-performance range. They are available in standard and fail-safe versions. The integrated inputs and outputs as well as the integrated technology functions facilitate both compact and cost-effective solutions. With Basic Controllers, flexible solutions for simple networking with integrated and optional communication connections can be implemented.

Basic Controllers are configured and programmed in the Totally Integrated Automation Portal (TIA Portal). You therefore benefit from maximum engineering efficiency, and as applications increase in complexity, you can easily transfer them to Advanced Controllers.

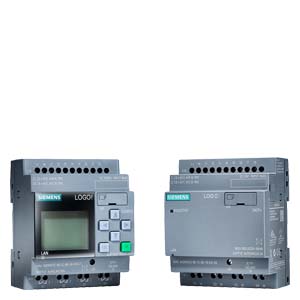

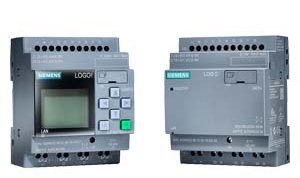

LOGO! logic module

logic module is the convenient, user-friendly solution for simple open-loop and closed-loop control tasks.

Application LOGO! can be implemented universally, e.g.:

  • Siemens LOGOBuilding services/electrical installation sector (lights, blinds, awnings, gates, access control points, barriers, ventilation systems...).
  • Control cabinet manufacture.
  • Mechanical engineering (pumps, small presses, compressors, lifting platforms, conveyor belts ...).
  • Special controls for conservatories, greenhouses.
  • Signal preprocessing for other controllers.

LOGO! logic modules are modular and can be flexibly expanded to suit the application.

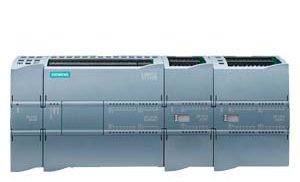

S7-1200

SIMATIC S7-1200 is the controller for open-loop and closed-loop control tasks in mechanical and plant engineering.

The SIMATIC S7-1200 combines compact modular design with high performance, making it suitable for a wide variety of automation applications. Its range of use extends from the replacement of relays and contactors up to complex automation tasks in networks and within distributed structures.

  • Basic ControlersEasy mounting of the modules on a standard DIN rail or in a control panel
  • Rugged, compact plastic enclosure
  • Easily accessible connection and control elements, protected by front flaps
  • Removable connection terminals, also for analog or digital expansion modules

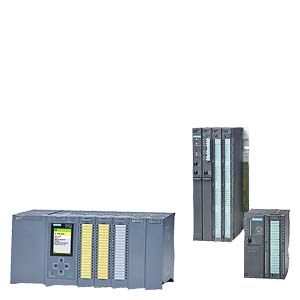

Advanced Controllers

The Advanced Controllers are especially suitable for medium and complex applications. The SIMATIC S7-1500 controller is the long-term successor to the SIMATIC S7-300 and SIMATIC S7-400 controllers in discrete automation and the standard for the plants of tomorrow – delivering convincing results with unique performance capability and innovative design and handling. SIMATIC S7 controllers with modular expansion capability are long-term compatible, maintenance-free, scalable and can, of course, be configured in the TIA Portal. They are the ideal solution for any automation task.

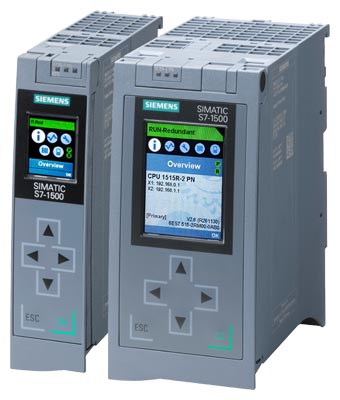

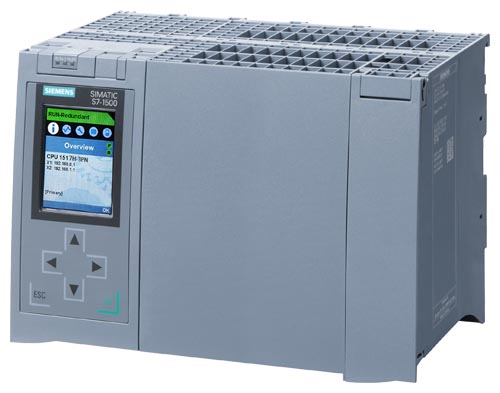

S7-1500

SIEMENS S7-1500(2)SIEMENS S7-1500
  • Modular, scalable, and universally usable system in IP20 degree of protection
  • The system solution for a variety of automation applications in discrete automation
  • Highest performance with excellent usability
  • Can only be configured in Totally Integrated Automation Portal with STEP 7 Professional V12 or higher

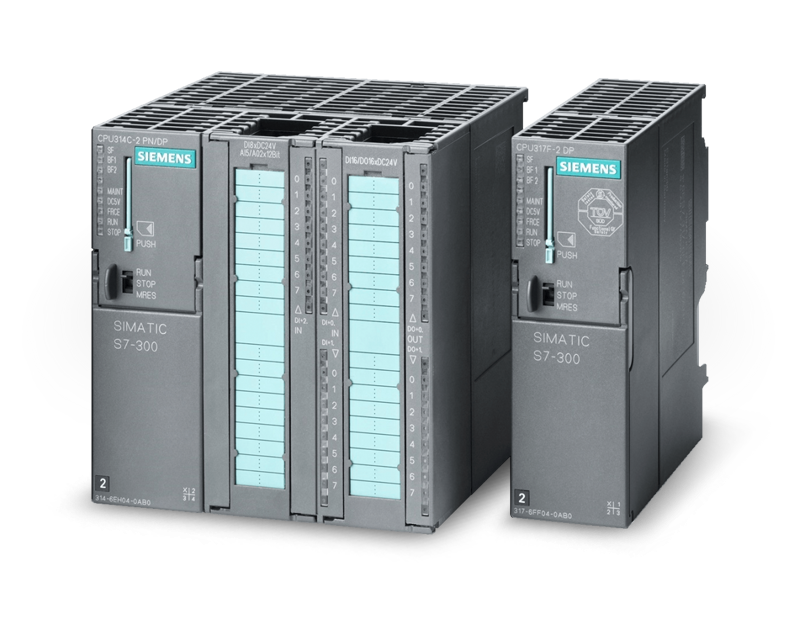

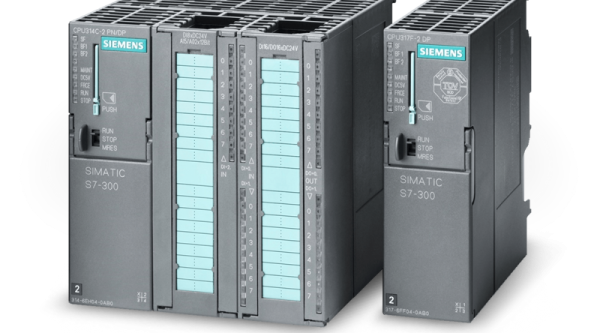

S7-300

SIMATIC S7-300 is the mini PLC system for the lower and medium performance ranges. The modular and fan-free design, simple implementation of distributed structures, and convenient handling make the SIMATIC S7-300 the cost-effective and user-friendly solution for the most diverse tasks in the low-end and mid-performance ranges.

Application areas of the SIMATIC S7-300 include:

  • Special machinery
  • Textile machines
  • Packaging machinery
  • General mechanical equipment manufacture
  • Controller building
  • Machine tool manufacture
  • Installation systems
  • Electrical/electronics industry and the skilled trades

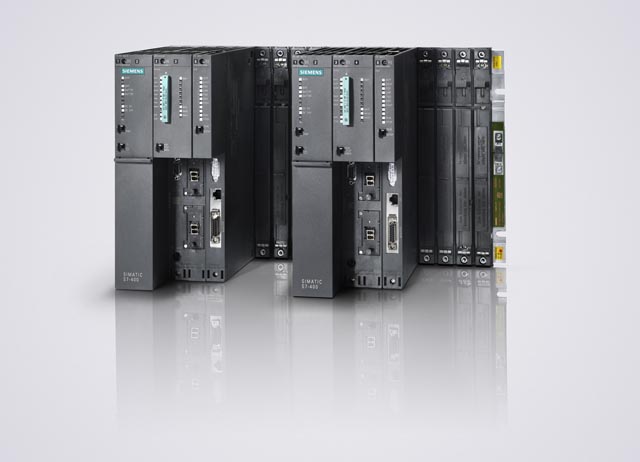

S7-400

The S7-400 is the most powerful PLC in the family of SIMATIC controllers. It enables successful automation solutions with Totally Integrated Automation (TIA). The S7-400 is an automation platform for system solutions that focuses on process engineering and is characterized primarily by its modularity and performance reserves.

Siemens S7400Category: is available in several versions:

  • S7-400: The power PLC for the mid to high-end performance ranges with modular, fan-free design.
  • S7-400H: Fault-tolerant automation system with redundant design for fail-safe applications.
  • S7-400F/FH: Fail-safe automation system with redundant design that can also have high availability.
