H660

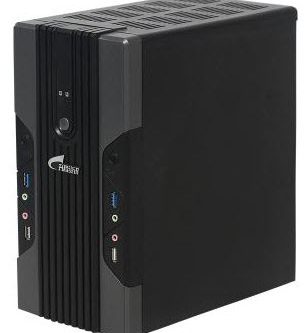

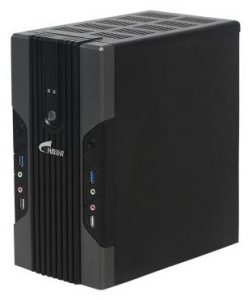

Centerm H660 blade thin client supports dual operating system individually running at the same time without any reliability on each other, delivering a highly secure solution.
H660
| PROFILE Of H660 | ||
| Centerm H660 blade thin client supports dual operating system individually running at the same time without any reliability on each other, delivering a highly secure solution. | ||
| FEATURES Of H660 | ||
| High Performance The two mainboards are both configured with high performance CPU. Two standalone operating system Support two standalone operating system running at the same time with interfaces, network, RAM, storage and computing separated thoroughly. Multiple interfaces Each mainboard has 4 serial port, 1 parallel port, 5 USB 2.0 port, 1 USB 3.0 port, 1 DVI-I port. Multiple VDI protocol supported Widely support Citrix ICA/HDX, VMware PCoIP and Microsoft RDP. |
||
| SPECIFICATION | ||
| Mainboard 1 | Mainboard 2 | |
| Processor | Intel dual-core 2.41Hz | Intel i3 dual-core 3.5GHz |
| Available Operating System | WES7 / WES8 / Win 10 IOT | WES7 / WES8 / Win 10 IOT |
| VDI/HSD | Citrix Receiver / VMware view / Microsoft RDP 8 Compatible | Citrix Receiver / VMware view / Microsoft RDP 8 Compatible |
| Management | CCCM | CCCM |
| MEMORY | ||
| RAM | 2GB DDR3L ( Max up to 8GB) | 4GB DDR3 ( Max up to 16GB) |
| Storage | 8GB SATA (up to 128GB SSD or optional HDD) | 500GB HDD or optional HDD |
| DISPLAY | ||
| VGA | 1 x | |
| DVI-I | 1x | 1x |
| Resolution | 1920×1200 (60Hz) | 1920×1200 (60Hz) |
| Color Depth | 32 bit | 32 bit |
| NETWORK | ||
| LAN | 1x (10/100/1000 Base-T Fast Ethernet, RJ-45) | 1x (10/100/1000 Base-T Fast Ethernet, RJ-45) |
| WLAN | Optional Mini PCI-E wireless | Optional Mini PCI-E wireless |
| I/O PERIPHERAL INTERFACE | ||
| USB 2.0 | 4x rear , 1x front | 4x rear , 1x front |
| USB 3.0 | 2x | 2x |
| RJ-45 | 1x | 1x |
| Serial | 1x (expended to 4 via cable) | 1x (expended to 4 via cable) |
| Parallel | 1x | 1x |
| PS/2 | 2x | N/A |
| AUDIO | ||
| Ports | Line-out x 1 , Mic-in x 1 (1/8-inch mini jack) | Line-out x 1 , Mic-in x 1 (1/8-inch mini jack) |
| DIMENSION | ||
| Device | 245mm x140mm x 272mm | |
| Packaging | 483mm x 286mm x 115mm | |
| Net Weight | 3.2 kg | |
| POWER | ||
| Adapter | Worldwide auto-sensing 100-240V AC, 50/60 Hz, 19V/7.89A DC | |
| Power Consumption | 10w | 50w |
| MOUNTING | ||
| Stand | Vertical feet standard | |
| Kensington Lock | Built-in Kensington security slot | |
| ENVIRONMENT | ||
| Cooling | Fan-less Convection | Fan Convection |
| Operation Temperature | 0°C to 40°C | |
| Relative Humidity | 30% to 90% non-condensing | |
